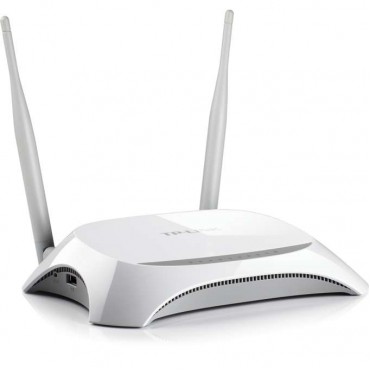

TP-Link TL-MR3420 | ID - 15463

Статус: New

Гаранция: 24 месец

Детайли: TP-Link TL-MR3420
3G/3.75G Wireless N Router

* 3G Connectivity On the Go
* High-Speed Wireless N Networking
* 3G/WAN Connection Back-up

3G On-the-Go
TP-LINK's TL-MR3420 3G/3.75G Wireless N Router allows you to quickly set up a 300Mbps wireless network on-the go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you're on the train, camping, or at a construction site, you'll have a reliable wireless connection to accommodate your networking needs.

Always Connected
Nothing is more frustrating than losing your Internet connection in the middle of your work. To avoid such interruptions and provide our customers with an always-online connection, TP-LINK is introducing the TL-MR3420, a robust 3G/3.75G wireless N router with true 3G/WAN failover capability.
You can set a primary link, 3G/3.75G or WAN (xDSL/Cable). TL-MR3420 switches to the secondary link when your primary service is interrupted. Once the service is restored, the router will automatically failback to the primary link–keeping your business online with the minimal interruption to users.

Software Specification

Standards - IEEE 802.11n/g/b, IEEE 802.3/3u, USB 2.0

Wireless Signal Rates With Automatic Fallback:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Frequency Range - 2.4-2.4835GHz
Wireless Transmit Power (MAX) - 20dBm(Max. EIRP)
Modulation Technology - DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Receiver Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Hardware Specification

Interface:
USB 2.0 Port for UMTS/HSPA/EVDO USB Modem
1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX

Antenna - 3dBi Detachable Omni Directional Antenna X 2

Power Supply Unit:
Input: Localized to Country of Sale
Output: 9VDC / 0.85A Switching PSU

Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Relative humidity - 10% ~ 90%, Non Condensation
Storage Humidity - 5%~95% Non-Condensing
Dimensions - 174 x 111 x 30 mm
