Изчерпан: Този продукт очаква зареждане

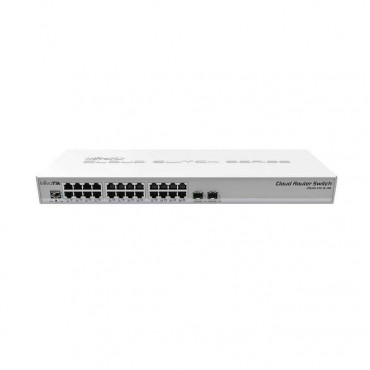

Switch MikroTik CRS326-24G-2S+RM
Не е в наличност
  5 / 5
Брой портове: 24
Максимална скорост: 1000
Статус: New
Гаранция: 12 месец
Детайли: MikroTik CRS326-24G-2S+RM

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has Dual boot feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Product specifications
Details
Product code CRS326-24G-2S+RM
10/100/1000 Ethernet ports 24
CPU 98DX3236A1-BTD4C000
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 440 x 144 x 44 mm
License level 5
Max Power consumption 24W
Operating System RouterOS / SwitchOS
PoE in Passive PoE
Power Jack 1
SFP+ ports 2
Serial port RJ45
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40C .. +60C

Switching results
CRS326-24G-2S+RM
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 65,476.2 33,523.8 10,338.3 42,345.9 3,576.1 43,427.8
Switching Non blocking Layer 2 capacity 65,476.2 67,047.6 10,338.3 84,691.7 3,576.1 86,855.7
Switching Non blocking Layer 1 throughput 65,476.2 44,000.0 10,338.3 44,000.0 3,576.1 44,000.0
Switching Non blocking Layer 1 capacity 65,476.2 88,000.0 10,338.3 88,000.0 3,576.1 88,000.0

Ethernet test results
CRS326-24G-2S+RM 98DX3236A1 all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.3 987.3 235 962.6 296 151.6
Bridging 25 bridge filter rules 81.3 987.3 90.7 371.5 90.9 46.5
Routing none (fast path) 81.3 987.3 235 962.6 261.9 134.1
Routing 25 simple queues 81.3 987.3 112.6 461.2 111.5 57.1
Routing 25 ip filter rules 59.8 726.2 61.4 251.5 59.5 30.5



ПОДРОБНА ХАРАКТЕРИСТИКА
Код на продукта:10068233


КУПИ НА ИЗПЛАЩАНЕ!
Кредитен модул TBI Bank 19.68

12 x 32.67 лв.

pariba
Switch MikroTik CRS326-24G-2S+RM
350 лв.
Switch MikroTik CRS326-24G-2S+RM, 1000Mbps, 24x LAN10/100/1000, Passive PoE, 2x SFP+ ports, 800MHz процесор, 512MB рам памет
Техническа характеристика на Switch MikroTik CRS326-24G-2S+RM
Брой портове 24
Максимална скорост 1000
Статус New
Гаранция 12 месец
Детайли MikroTik CRS326-24G-2S+RM

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has Dual boot feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Product specifications
Details
Product code CRS326-24G-2S+RM
10/100/1000 Ethernet ports 24
CPU 98DX3236A1-BTD4C000
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 440 x 144 x 44 mm
License level 5
Max Power consumption 24W
Operating System RouterOS / SwitchOS
PoE in Passive PoE
Power Jack 1
SFP+ ports 2
Serial port RJ45
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40C .. +60C

Switching results
CRS326-24G-2S+RM
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 65,476.2 33,523.8 10,338.3 42,345.9 3,576.1 43,427.8
Switching Non blocking Layer 2 capacity 65,476.2 67,047.6 10,338.3 84,691.7 3,576.1 86,855.7
Switching Non blocking Layer 1 throughput 65,476.2 44,000.0 10,338.3 44,000.0 3,576.1 44,000.0
Switching Non blocking Layer 1 capacity 65,476.2 88,000.0 10,338.3 88,000.0 3,576.1 88,000.0

Ethernet test results
CRS326-24G-2S+RM 98DX3236A1 all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.3 987.3 235 962.6 296 151.6
Bridging 25 bridge filter rules 81.3 987.3 90.7 371.5 90.9 46.5
Routing none (fast path) 81.3 987.3 235 962.6 261.9 134.1
Routing 25 simple queues 81.3 987.3 112.6 461.2 111.5 57.1
Routing 25 ip filter rules 59.8 726.2 61.4 251.5 59.5 30.5
