Изчерпан: Този продукт очаква зареждане

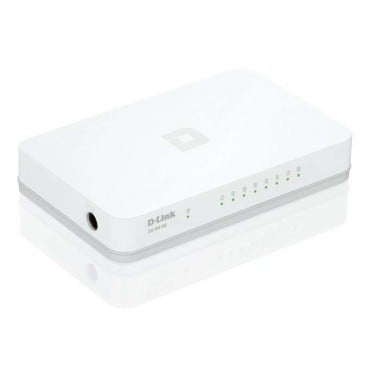

Switch D-Link GO-SW-8G/E
Не е в наличност
  5 / 5   (163 гласа)
Статус: New
Гаранция: 24 месец
Детайли: D-Link GO-SW-8G/E

Tech spec:

Switching Fabric:
• 16Gbps

Standards:
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol:
• CSMA/CD

Data Transfer Rates:
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)

Topology:
• Star

Network Cables:
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange:
• Auto MDI/MDIX adjustment for all ports

LED Indicators:

• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method:
• Store-and-forward

MAC Address Table:
• 8K

MAC Address Learning:
• Automatic update

Packet Filtering/Forwarding Rates:
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer:
• 128KB per device

Jumbo Frames:
• 9,216 Bytes

DC Input:
• External 5 V/1 A Level "V" Power Adapter

Power Consumption:
• DC input: 3.06 watts
• AC input: 3.9 watts

MTBF:
• 412,433 hours

Operating Temperature:
• 0 to 40 ˚C

Storage Temperature:
• -10 to 70 ˚C

Operating Humidity:
• 10% to 90% RH non-condensing

Storage Humidity:
• 5% to 90% RH non-condensing

Dimensions:
• 128 x 68.5 x 25.4 mm

Weight:
• 195 grams

Certifications:
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD



ПОДРОБНА ХАРАКТЕРИСТИКА
Код на продукта:10061844
Switch D-Link GO-SW-8G/E
40 лв.
Switch D-Link GO-SW-8G/E, 1000Mbps, 8-Port,
Техническа характеристика на Switch D-Link GO-SW-8G/E
Статус New
Гаранция 24 месец
Детайли D-Link GO-SW-8G/E

Tech spec:

Switching Fabric:
• 16Gbps

Standards:
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol:
• CSMA/CD

Data Transfer Rates:
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)

Topology:
• Star

Network Cables:
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange:
• Auto MDI/MDIX adjustment for all ports

LED Indicators:

• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method:
• Store-and-forward

MAC Address Table:
• 8K

MAC Address Learning:
• Automatic update

Packet Filtering/Forwarding Rates:
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer:
• 128KB per device

Jumbo Frames:
• 9,216 Bytes

DC Input:
• External 5 V/1 A Level "V" Power Adapter

Power Consumption:
• DC input: 3.06 watts
• AC input: 3.9 watts

MTBF:
• 412,433 hours

Operating Temperature:
• 0 to 40 ˚C

Storage Temperature:
• -10 to 70 ˚C

Operating Humidity:
• 10% to 90% RH non-condensing

Storage Humidity:
• 5% to 90% RH non-condensing

Dimensions:
• 128 x 68.5 x 25.4 mm

Weight:
• 195 grams

Certifications:
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD
