Изчерпан: Този продукт очаква зареждане

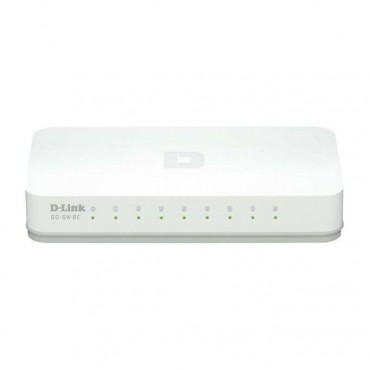

Switch D-Link GO-SW-8E
Не е в наличност
  4 / 5   (143 гласа)
Статус: New
Гаранция: 24 месец
Детайли: Switch D-Link GO-SW-8E

Features
High-Speed Networking
Eight 10/100 Mbps Fast Ethernet ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Reliability
IEEE 802.3x flow control
Store-and-forward switching scheme
RoHS compliant
Easy Setup
Plug-and-play installation
Auto MDI/MDIX crossover for all ports
D-Link Green Technology
IEEE 802.3az Energy Efficient Ethernet
Port standby
Cable length detection
Link status detection
Stylish Design
Compact lightweight chassis
Ports located conveniently at the rear
Noise-free operation
Technical Specifications
General
Device Interfaces
Eight 10/100 Fast Ethernet LAN ports

Functionality
Advanced Features
Green Ethernet
1.6 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Compliance with IEEE802.3az EEE power saving
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS compliant
Supports 2048-byte Jumbo Frames

Protocol
CSMA/CD

Data Transfer
Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Transmission Method
Store-and-forward

MAC Address Table
2K

MAC Address Learning
Automatic Update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer
128 KB per device

Physical
LED Indicators
Per port: Link/Activity
Per device: Power

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

Dimensions
141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)

Power
5 V/1 A Power Adapter

Heat Dissipation
Power On (Standby): AC input:2.0472 Btu/h
Maximum: AC input:7.47228 Btu/h

Power Consumption
Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
Maximum: DC input: 1.78 watts, AC input: 2.19 watts
Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts

Temperature
Operating: 0 to 50 °C (14 to 158 °F)
Storage: -10 to 70 °C (14 to 158 °F)

Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing

MTBF
2,137,319 hours

Certifications
CE class B
FCC class B
cUL
CB
VCCI Class B

http://www.dlink.com/bg/bg/home-solutions/connect/switches/go-sw-8e



ПОДРОБНА ХАРАКТЕРИСТИКА
Код на продукта:10061843
Switch D-Link GO-SW-8E
17 лв.
Switch D-Link GO-SW-8E, 100Mbps, 8-Port
Техническа характеристика на Switch D-Link GO-SW-8E
Статус New
Гаранция 24 месец
Детайли Switch D-Link GO-SW-8E

Features
High-Speed Networking
Eight 10/100 Mbps Fast Ethernet ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Reliability
IEEE 802.3x flow control
Store-and-forward switching scheme
RoHS compliant
Easy Setup
Plug-and-play installation
Auto MDI/MDIX crossover for all ports
D-Link Green Technology
IEEE 802.3az Energy Efficient Ethernet
Port standby
Cable length detection
Link status detection
Stylish Design
Compact lightweight chassis
Ports located conveniently at the rear
Noise-free operation
Technical Specifications
General
Device Interfaces
Eight 10/100 Fast Ethernet LAN ports

Functionality
Advanced Features
Green Ethernet
1.6 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Compliance with IEEE802.3az EEE power saving
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS compliant
Supports 2048-byte Jumbo Frames

Protocol
CSMA/CD

Data Transfer
Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Transmission Method
Store-and-forward

MAC Address Table
2K

MAC Address Learning
Automatic Update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer
128 KB per device

Physical
LED Indicators
Per port: Link/Activity
Per device: Power

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

Dimensions
141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)

Power
5 V/1 A Power Adapter

Heat Dissipation
Power On (Standby): AC input:2.0472 Btu/h
Maximum: AC input:7.47228 Btu/h

Power Consumption
Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
Maximum: DC input: 1.78 watts, AC input: 2.19 watts
Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts

Temperature
Operating: 0 to 50 °C (14 to 158 °F)
Storage: -10 to 70 °C (14 to 158 °F)

Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing

MTBF
2,137,319 hours

Certifications
CE class B
FCC class B
cUL
CB
VCCI Class B

http://www.dlink.com/bg/bg/home-solutions/connect/switches/go-sw-8e
